Meat Dicing Machine Leading supplier

China processional meat cutting machine factory, exported to 200 customers

High quality Meat Dicing Machine-Hanghui

Meat dicing machine is mainly used to cut slightly frozen meat, fresh meat, and cooked meat into 4-30mm dices. By replacing the cutter, the meat dicer can also cut meat slices, meat strips, and meat strips. Because of the widely used and high production efficiency, our meat dicing machine is one of the necessary meat cutting machine in food processing plants and meat processing plants.

meat dicing machine

Working Principle

When the meat cuber machine is working, the big meat block is feded into the cutting knife, which consists of a horizontal knife, a vertical cutting knife, and a rotary knife. The rotary knife cuts the meat into slices, the horizontal knife cut the meat into strips, and the vertical cutting knife cut the meat into dices. Finally, the chopped dicer is discharged from the outlet under the extrusion force of the feeder. By replacing different sizes of the blades, then we can get 4-30mm different meat dices.

meat dicing machine working principle

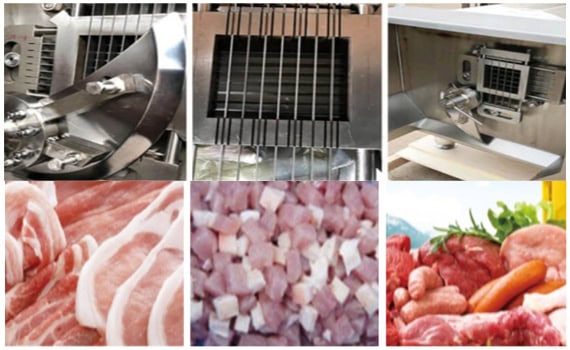

Meat Dicing Machine Application

Meat Dicing Machine Applications

Our meat dicing machine is mainly used to cut various frozen meat, fresh meat and cooked meat, such as diced beef, diced mutton, diced pork, diced chicken, etc. It can also be used to cut vegetables and fruits. It is widely used in many industries: meat processing plants, frozen food factories, restaurants, supermarkets, schools, etc.

Working video

First install the knife, then put the frozen meat or fresh meat into the feed port, the meat dicing machine will automatically dice or slice the meat.

features of the Meat Dicing Machine

  • Multifunctional: This meat cutter can cut dices, strips, pieces and chunks.

  • Easy to operate: The machine is equipped with the automatic push device, you just put the meat into the feed port is ok.

  • Easy to assemble: The blade, feed port, discharge port and tools are easy to install and can be cleaned with water.

  • Hygiene and safety: The machine is made of food-grade 304 stainless steel.

  • Easy to disassemble and assemble: The blades, inlet, outlet and tools are easy to install and clean by water.

  • Protective device: The machine will stop working immediately after the door is opened to prevent injury.

meat Dicer Machine Parameter

Model MD-350 MD-550
Capacity 300-500kg/h 500-800kg/h
Power 3KW 3.7KW
Voltage 380V/50HZ/3Phase (Customized) 380V/50HZ/3Phase (Customized)
Meat cube size 4/8/12mm or 6/12mm 6/12/24mm or 5/10/15/20mm
Hopper size 84*84*350mm 120*120*550mm
Dimensions 730*1410*980mm 830*1660*1150mm
Weight 500kg 700kg
Machine material 304 stainless steel 304 stainless steel
