Meat Bone separator Factory

Exported to more than 80 customers

Meat bone separator expert- Hanghui

Hanghui meat bone separator can separate the meat remaining on the bones and also grind the bones into small pieces. The separated meat and bones are further processed into other meat products by bone grinder machine. This deboning machine can effectively improve the utilization rate of bones and meat. This deboning machine is mainly used in meat processing plants, frozen meat product processing plants and slaughtering plants, etc.

Meat Bone Separator

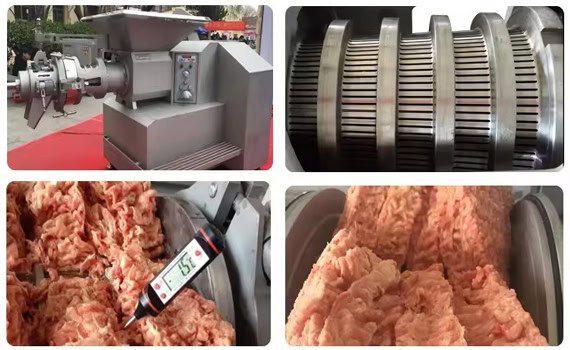

Working Principle

First, the meat or poultry is chopped into meat paste and bone residue by spiral extrusion. Due to the different hardness of meat paste and bones, the softer meat paste is squeezed out of the screen and the harder bones are discharged from the bottom. Different screen sizes can be replaced to separate meat paste and bone residue of different sizes.

Meat Bone Separator Working Principle
Meat Bone Separator Applications

Applications

Hanghui meat bone separator has a wide range of uses. It can be used to separate meat from bones of various animals or poultry, and finally obtain meat paste and bone residue. The separated meat paste can be used to make sausages, meatballs, bacon, luncheon meat and other meat products, and the bone residue can also be used to make nutritional products such as bone soup, bone meal or animal feed. For example：chicken bones, duck bones, goose bones, cattle bones, fish bones, sheep bones, pig bones, horse bones and other bones.

Meat Bone separator Features

  • Our poultry deboning machine is widely application to different kinds of bones and poultry.

  • The meat bone separator is made of food-grade 304 stainless steel, which is hygienic and durable.

  • The meat paste separation rate can be as high as 60%-75%, which greatly improves the utilization rate of bones and meat.

  • The entire separation process is carried out at low temperature to ensure the quality of bones and meat.

  • Different discharge sizes can be adjusted

Meat Bone Separator Features

Working Video

You just need to put the bones into the hopper, the meat bone separator will automatically crush and separate the meat and bone residue.

Meat Bone separator Parameter

Model CDM-80 CDM-100 CDM-130 CDM-160 CDM-180
Capacity 200-400kg/h 500-700kg/h 1000-1500kg/h 2000-3000kg/h 3500-4500kg/h
Power 5.5KW/3Phase 6.5-8KW/3Phase 13-16KW/3Phase 22-28KW/3Phase 26-32KW/3Phase
Voltage (Customized) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Hopper Volume 14L 20L 50L 110L 180L
Output Rate 65%~90% 65%~90% 65%~90% 65%~90% 65%~90%
Bone Residue Content 0.06%~0.08% 0.06%~0.08% 0.06%~0.08% 0.06%~0.08% 0.06%~0.08%
Optimum temperature -3°C~4°C -3°C~4°C -3°C~4°C -3°C~4°C -3°C~4°C
Dimensions 1400*650*930mm 1440*630*970mm 1990*820*1300mm 2130*890*1400mm 2250*1070*1500mm
Weight 400kg 450kg 800kg 1350kg 1750kg

Get the latest price
