Frozen Meat Grinder Supplier from China

Top quality meat processing machines manufacturer

Frozen Meat Grinder Factory-hanghui

Hanghui frozen meat grinder is a kind of meat grinding machine that can directly grind -5° to -20° frozen meat into meat paste. Besides frozen meat, it can also process fresh meat and poultry. The Minced meat can be used to make sausages, meatballs, hamburger patties, luncheon meat and pet food etc. This meat grinding machine is mainly used in meat processing plants, butcher shops, supermarkets, etc.

frozen meat grinder

Application

Our frozen meat grinder can grind frozen meat, fresh meat，poultry bones, fish, shrimp, fruits and vegetables, etc.

It is widely used in hotels, schools, restaurants, butcher shops. And other meat processing industries, it can process the following different types of materials.

Frozen Meat Grinder Applications

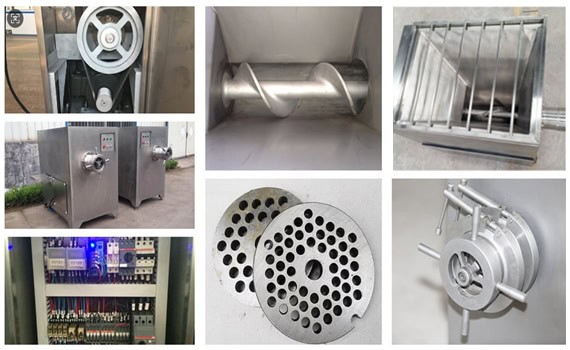

Frozen Meat Grinder Features

features

  • Our frozen meat grinder is made of SUS304, safe and durable.

  • Fully automatic work, Easy to operate and maintain.

  • It can grind different meat size by change spare.

  • Hanghui meat mincer is highly efficient and widely used.

  • The mincing time is short and the heat generated is small, which is better to keeping the meat fresh.

Working Principle and video

The frozen meat grinder first uses the rotating screw to transport the raw meat in the hopper to the pre-cut hole plate, squeeze and compact the meat. Then, chop the meat with the rotating blade and the hole blade. Finally, the meat particles are discharged from the hole plate by extrusion force.

The final meat particles size mainly depends on the size of the reamer hole. The smaller the hole, the smaller the meat particle size and capacity.

Frozen meat Grinder Parameter

Model JR-100 JR-120 JR-130 JR-250 JR-300
Capacity 500kg/h 1000-1500kg/h 2000-3000kg/h 3000-5000kg/h 6000-12000kg/h
Power 3KW 5.5KW 7.5KW 37KW 55KW
Voltage 380V/50HZ/3Phase (Customized) 380V/50HZ/3Phase (Customized) 380V/50HZ/3Phase (Customized) 380V/50HZ/3Phase (Customized) 380V/50HZ/3Phase (Customized)
Meat size 3-30mm 3-30mm 3-30mm 4-35mm 4-35mm
Dimensions 900*580*1000mm 1070*600*1100mm 1200*800*1400mm 2060*1070*1610mm 2060*1145*1940mm
Weight 180kh 260kg 400kg 1500kg 2100kg

Get the latest price
