Commercial Beef Jerky Dehydrator

Batch capacity from 60kg to 1000kg

Leading Beef Jerky Dehydrator Supplier-Hanghui

Hanghui beef jerky dehydrator is the professional meat dehydrator to dry different types of meat such as beef jerky, pork jerky, chicken jerky, fish jerky, biltong, meat stix.etc. It can mass produce beef jerky with different flavors and is widely used in various beef jerky processing plants, food companies, etc.

beef jerky dehydrator

Working Principle

The heating element generates heat, and the fan circulates the hot air in the dehydrator, blowing it evenly on the surface of the beef jerky, causing the moisture in the beef to evaporate, and finally making dehydrated beef jerky.

Beef Jerky Dehydrator Working Principle
Beef Jerky Dehydrator Applications

Applications

Hanghui beef jerky dehydrator can dry various jerky and meat strips, and also can dry sea cucumbers, fish products, electrical components, pet food, vegetables, fruits, spices, seasonings, powders and medicines,plastics, metals, pc boards, glass, building materials, etc. It can be used in food, pharmaceutical, chemical, light industry and so on.

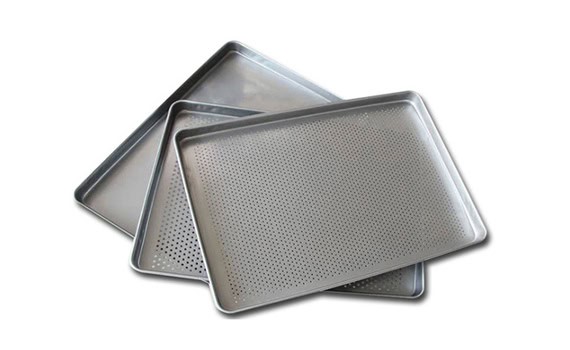

Different Baking Trays

We have different kinds of baking trays for differnet use：With holes, without holes, grid, etc. TOur standard tray dimensions is 640*460*45mm.

We can customize any size of the trolley and tray for your beef jerky dehydrator.

Beef Jerky Dehydrator Baking Trays

Working Video

First, place the pre-treated beef jerky evenly on the tray inside the dehydrator, and then set the appropriate drying temperature and drying time according to the type and thickness of the beef jerky. During the dehydration process, check the status of the beef jerky regularly, and you can adjust the temperature, wind speed or flip the beef jerky.

Beef Jerky Dehydrator Features

  • This meat dryer machine have widely application for different material.

  • The size of the dehydrators,trolley and trays can be customized upon request.

  • PLC control panel, easy to set and operate.

  • The machine has an automatic timing function and can also be equipped with automatic exhaust

  • Heating temperature and heating time can be freely set.

  • Heating ways can be electric heating, steam heating and natural gas heating.

  • The material of dehydrator can be stainless steel 201, 304 or 316 according to your need.

  • Energy saving, environmental protection, uniform temperature.

Beef Jerky Dehydrator Parameter

Model D60 D120 D240 D360 D480
Capacity 60kg/batch 120kg/batch 240kg/batch 360kg/batch 480kg/batch
Power 12KW 15KW 30KW 45KW 60KW
Voltage 220V-480V 220V-480V 220V-480V 220V-480V 220V-480V
Hz 50/60 50/60 50/60 50/60 50/60
Trolley 1 2 4 6 8
Trolley size 950*710*1510mm 950*710*1510mm 950*710*1510mm 950*710*1510mm 950*710*1510mm
Trays 24 48 96 144 196
Tray size 640*460*45mm 640*460*45mm 640*460*45mm 640*460*45mm 640*460*45mm
Temperature 30-300℃ 30-300℃ 30-300℃ 30-300℃ 30-300℃
Time 0-999hours 0-999hours 0-999hours 0-999hours 0-999hours
Dimensions 1380*1200*2000mm 2300*1200*2000mm 2300*2200*2000mm 3200*2200*2000mm 4600*2200*2000mm

Get the latest price
